- Portable potentiostat / Galvanostat
- Current Range: Up to ±1A
- Voltage Range: Up to ±15V
- EIS (Up to 1 MHz), 1 / 2 Channels
- AfterMath® Blue software
WaveDriver Series Electrochemical Workstation
WaveDriver 200
EIS (Up to 1 MHz) / 2 Channels
WaveDriver 100
EIS (Up to 1 MHz) / Single Channel
WaveDriver 40
DC / 2 Channels
WaveNow Series Electrochemical Workstation
WaveNowXV
- Potentiostat / Galvanostat
- Simple, Portable & Single Channel
- Current Range: ±10 µA to ±100 mA
- Voltage Range: ±10V
-
Weight: 280 g

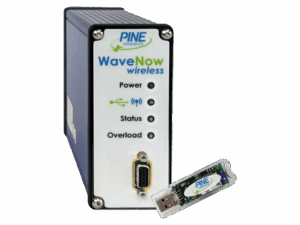

WaveNow Wireless
- Potentiostat / Galvanostat : Single Channel
- Current range: ± 150 mA to ± 5 nA
- Voltage Range: ± 8V
- Control electrochemical experiments wirelessly
-
Weight 0.6 kg

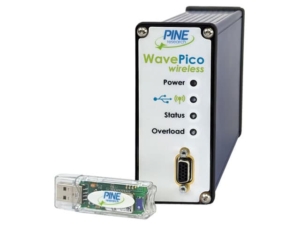

WavePico Wireless
- Potentiostat / Galvanostat : Single Channel
- Current range: ±50 pA to ± 1.5 mA
- Voltage Range: ± 8V
- Control electrochemical experiments wirelessly
-
Weight 1.8kg

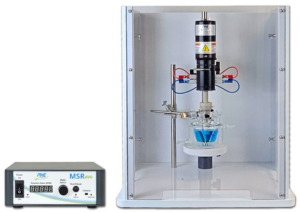

MSR Evo Electrode Rotator
- RDE / RRDE / RCE
- Rotator / Control Unit / Shaft / Enclosure
- Maximum Rotation: 10000 RPM
- Rotating Disk Electrode (RDE): GC, Pt, Au, Ag and Pd
- Rotating Ring-Disk Electrode (RRDE): GC, Pt & Au (Ring / Disk)
- Rotating Cylinder Electrode (RCE): Carbon Steel, Stainless Steel & Nickel Alloy
- High Collection Efficiency
Reference Electrode, Silver/Silver Chloride, Single Junction
E8R4 Series Fixed-Disk RRDE Tip
Counter Electrode Assembly, Platinum (Pt), 14/20
- Aqueous / Non-Aqueous Reference Electrodes
- Single junction Ag / AgCl, Hg / Hg2Cl2, Hg / Hg2SO4, Hg / HgO
- Double junction Ag / AgCl, Hg / Hg2SO4
- Non-aqueous Ag
- Counter Electrodes: Pt Wire, Pt mesh, Graphite
- Working Electrodes: Glassy carbon (GC), Platinum (Pt) and Gold (Au)
- Other Electrodes: Honecomb, Screen printed
Electrochemical Cells: Kits / Series / Individual Cells / Parts / Accessories
- Large RDE/RRDE glass cell
- Standard 3-electrode voltammetry
- Without a water jacket
- Approximately 250 mL of electrolyte
- Borosilicate glass, 50 mL volume
- 8.3 cm (with base) cell height, 3.5 cm diameter
- Large GL-45 opening at the top
- Low volume PTFE cell
- Three LowProfile electrodes (working, counter, and reference)
- Kits: cell, Cell Cap Kit, and two gas purge/sparge tubes
Rotating Disk/Ring-Disk Cell Kit, Standard Volume, Water Jacket
- Stationary, Rotating Disk (RDE), Rotating Ring-Disk (RRDE)
- Borosilicate glass materials, Cell Water jacket
- Maximum cell volume (Overall): 150ml
- Cell diameter – 100mm (with jacket), Cell height – 6.5cm

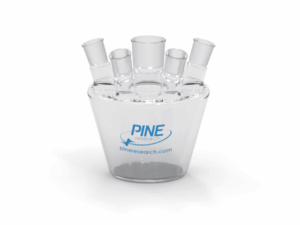

Rotating Disk/Ring-Disk Standard Volume Cell Kit Component: Cell (Cell Only)
- Rotating Disk (RDE), Rotating Ring-Disk (RRDE), Stationary
- Borosilicate glass, cell volume – 150 ml (maximum)
- Cell height – 10 cm, cell diameter varies (tapered)
Low Volume RDE/RRDE Cell Kit
- Rotating Disk (RDE), Rotating Ring-Disk (RRDE)
- Cell material: Borosilicate glass, Cell volume – 10ml (maximum)
- Cell diameter – 68mm (hex base), Cell height 41mm
- Low volume cell series
Aftermath Blue
- Control and Analysis Software (Included with potentiostats)
- All standard electrochemical routines
- EIS equivalent circuit fittings (Included with EIS potentiostats)
- Free lifetime upgradation
- CV Simulations (subscription-based)
ZView®
- Powerful equivalent circuit modelling
- Instant fitting with common circuits
- Data processing & graphing
- Batch file processing
- Kramers-Kronig (K-K) testing
- Modify data for area-normalisation, component subtraction or addition
FuelCell5®
- Apply and control a current, voltage, or power load on the fuel cell under test
- Measure fuel cell impedance at full operating current (requires additional hardware)
- Operate the purge and fuel gas streams for a PEM-type fuel cell
- Control the fuel cell test fixture and gas humidification temperatures
- Monitor performance over a wide range of time intervals

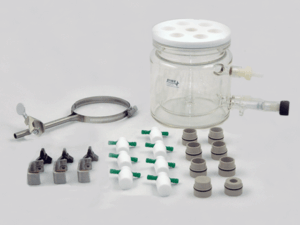

Rotating Cylinder Cell Kit, OpenTop, 15 mm OD RCE, Water Jacket, Drain Valve
- 15 mm OD Rotating Cylinder Electrode (RCE)
- Corrosion inhibitor screening by linear polarisation resistance (LPR)
- OpenTop Cell with Water Jacket and Drain Valve Kit
- Corrosion of flat metal
- Photoelectrochemical reactions
- Cell stoppers, Electrochemical cell

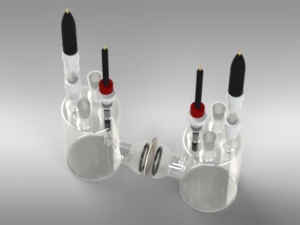

- Hydrogen permeation cell
- Corrosion via permeation of hydrogen through a thin disk of metal (typically steel)
- Includes two cells, several electrodes/accessories
- Flat Cell: Suited for thin and planar metal samples with paint/coating
- Corrosion and photoelectrochemical experiments.
- Kit includes: Cell stoppers, Cell vent accessory, Electrochemical cell, End Plate Assemblies, Gas sparge/purge tube(s)
- PEEK shrouded body, Rotating rate 4000 RPM (Maximum)
-
Thermal stability range: 10°C – 80°C
- RCE Cylinder Insert, 15mm OD, 1018 Carbon Steel / 316L Stainless Steel / 430 Stainless Steel
- Electrode Shafts: Shaft length 259 mm, Shroud Diameter 15 mm, Shroud length 152 mm
- Electrode Rotator Compatibility: ASR, MSR and CPR Electrode rotators
- Maximum Rotation rate: 2000 RPM
- Thermal Stability Range: 10°C – 25°C
Photoelectrochemical Cell, Single Chamber
- Photoelectrochemical cell, Large Volume Cell Series
- Cell material: Quartz, No cell water jacket
- Volume – 250 ml, Diameter – 8 cm, Height – 8 cm
Quartz Photoelectrochemical Cell
- Photoelectrochemical, Standard volume cell series
- Cell material: Quartz, No cell water jacket
- Volume – 250 ml (maximum), Diameter – 8cm, Height – 8 cm
Honeycomb Spectroelectrochemistry Cell
- Honeycomb spectroelectrochemical cell
- Cell material – quartz, Cell volume – 2.8 ml
- Length – 12.5 mm, width – 12.5 mm, height – 45 mm

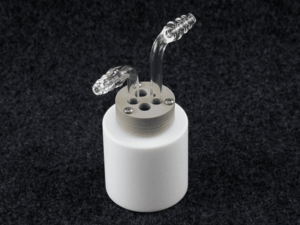

Rotating Disk/Ring-Disk Alkaline Resistant Cell
- PTFE cell was designed for use with a rotator, RDE/RRDE electrodes, and accessories.
- OpenTop design is commonly used with our RCE cells.
- One 24/25 port in the centre for the RDE/RRDE electrode shafts and four 14/20 side ports for counter, reference, and gas sparging tools.
Three Electrode Cell Kit
- Low volume PTFE cell designed
- Gold (Au) / Glassy Carbon (GC), /Platinum (Pt) working electrode
- Working electrode diameter 6.35 mm (shroud), length 85 mm, PTFE Shroud material
- Overall cell volume 15ml (can be used down to ~ 5ml)
3-electrode battery test cell for electrochemical testing of lithium-ion and other materials
Specialized electrochemical cell for simultaneous testing with two reference electrodes.
Test cell for use with aqueous electrolytes
Aprotic Electrolytes
- 2- / 3-Electrode Setups (Ref. picture – B / A)
- Lower electrode (+): LCO/NCM/LFP ..
- Upper electrode (-): Li metal
- Lower plunger: SS or Al
- Upper plunger: SS or Cu
- Insulation sleeve PP (Li-Reference, Separator FS-5P) for 3-electrode Setups
- Insulation sleeve PP (Separator FS-5P) for 2-electrode setups
Aprotic High-Temperature Electrolytes
- 3-electrode setups, Temperature < 200 °C
- Lower electrode (+): LCO, NCM, LFP ..
- Upper electrode (-): Graphite / LTO
- Lower plunger: SS or Al, upper plunger: SS or Cu
- Reference electrode: Li metal
- Plain Insulation sleeve PEEK, disassembled
Aprotic Supercap electrolyte (C)
- 3-Electrode Setups
- Lower electrode: Activated carbon
- Upper electrode: AC
- Upper & lower plunger: SS or Al
- Ref. electrode: Activated carbon on SS
- Insulation sleeve (PP), AC(SS) ring, FS/5P separator (PP fiber/PE membrane, 220 µm)
Aqueous Supercap electrolyte (D)
- 3-Electrode Setups
- Lower & lower electrode: AC
- Upper & lower plunger with gold current disc: PEEK or Au
- Ref. electrode: Activated carbon on SS
- Plain Insulation sleeve PEEK, disassembled
- Force sensor: Up to 1500 Newton (up to 5.9 MPa at 18mm electrode diameter)
- For aprotic chemistries with liquid and solid-state electrolytes
- Additional monitoring of gas pressure and temperature
- For 2- and 3-electrode setups, 18 mm electrode diameter & separator (dia 21.6 mm)
- Gas pressure sensor, pressure range of 0 to 3 bar abs
- Operational temperature: -20 to 80 °C
- Gas analysis at high temperature up to 400 °C
- Full temperature control via software
- Gas sample port, pressure sensor, Gas In- and Outlets
In-situ Gas Analysis Test Cell
- In-situ gas analysis in a flow-through setup
- Lower plungers with a perforated plate with a spiral-shaped flow field
- Optional laser-welded pressure sensor, 0 to 3 bar abs
- ECC-DEMS: Time-resolved gas analysis
- ECC-Air: Small and defined electrolyte volume down to 0.05 cm3
Leakproof Test Cell
- Leakproof test cell for measuring gas evolution
- Laser-welded pressure sensor, 0 to 3 bar abs
- Electrode feedthrough with gas-to-metal seals
ECC-Air-Ni: Materials in media contact are nickel and PEEK
- Test cell for dilatometric analysis (expansion of electrodes)
- Suited for 2- / 3-electrode measurements
- Capacitive displacement sensor (range 250 μm, resolution ≤ 5 nm)
- Laser-welded gas pressure sensor, 0 to 3 bar abs.
- Temperature sensor, -20 to 80° C
- Electrode feedthroughs with glass-to-metal seals
High Current EIS Analysis
- High Current Measurement & Excellent accuracy
- Designed for EIS & True 4-Quadrant operation
- Output Voltage: ± 10V
- Output Current: ± 20A, ± 50A, ±100A
- EIS frequency: 1mHz to 100 kHz (optional 1 MHz)
- Artemis: Measurement Software
Advanced Luggin Low Volume Membrane Cell Kit
Through-plane conductivity (σ⊥) measurement
- Cell features: Flexible, Low volume, Luggin Cell, Membrane Cell, Borosilicate glass cell
- Separated membrane H-cell kit with Luggin capillaries
- Measures through plane resistance, conductivity, and permeability of membranes/separators
- Dimensions: Volume – 30ml, Diameter – 25mm, Height – 46mm
Membrane Conductivity Hardware
In-plane conductivity (σ||) measurement
- Tests pure membrane samples – In-plane, 4-electrode technique
- Recommended membrane sample size: 25mm x 10mm
- Designed for use in an environmental chamber or non-conductive liquid
- Temperatures up to 150 °C, High temperature option to 250 ºC
- Membrane Conductivity Clamp for tests in a beaker or a humidity chamber
