Hole Drlling System

Manual Hole Drilling System

• Create electrolyte-fill holes in the glass DSC substrate
• Grit media: Grit sizes from ultra fine 10 micron to larger 300 micron media
• Manual control of grit dosage
• Safety Features: Safety glass window – protects the user during operation while providing excellent view. Dust Absorber to collect harmful dust particles produced during the blasting process
• Blasting Unit: Length 320mm, Width 220mm, Height 350mm
• Blasting Chamber: Length 460mm, Width 300mm, Height 200mm
• Substrate Size’s Accommodated: Max Size: Length 430mm x Width 270mm

Automated Hole Drilling Machine

• Touch-screen control panel offers numerous options for custom patterns and user controls.
• Grit media: Ultra-fine 10 micron to larger 300 micron.
• Manual control of grit dosage.
• Safety Features: Fully enclosed blast operations area with clear glass window for monitoring activity. Automatic shut-off feature.
• Accommodated Substrate Size: 20mm x 20mm (Minimum) / 300mm x 300mm (Maximum)

Laser Scribing System

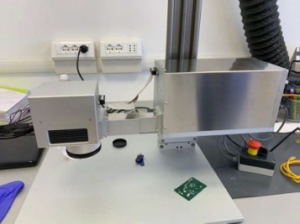

Laser Scribing System for P1-P2-P3 Process in Solar Cell

• 355nm OEM Class Laser writing system
• 4 Laser system
• Compact Air-cooled single unit
• Frequency range: 10 kHz  –  to 50 kHz
• Pulse duration: 500 – 700 ps
• Integrated high vision system magnification (maximum field of view approx. 4 x 3 mm) linked to SW for improved and easier alignment.

Top

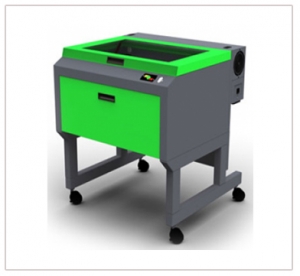

Large Scribing System

• High-precision computer control system includes safety features
• Produce a continuous cut, and remove the conductive layer from the glass substrates
• CO2 Laser: Wavelength 10.6 microns, Class 3a. Available in 10, 25, 30, 40 Watts
• Working area: 400 mm to 600 mm x 300 mm to 450 mm
• Accommodated Substrate Size: Up to 740mm (L) x  580mm (W) x 230 mm (H)

Top

Titanium Hot Plate

• Titanium hot plate for curing and baking substrates, working and counter electrodes to produce perovskite / DSSC solar cells and modules
• Temperature range: RT – 600 °C
• 5-segment programming with set temperature, ramp time, and dwell time
• Short heat-up time (600°C) in 20 minutes
• Surface temperature homogeneity: ± 2 °C

Top

Pneumatic Heat Press

• Rapid assembly and permanent sealing of Perovskite and DSSC test cells
• 38cm x 38cm late or 40 cm x 50 cm plate
• PID temperature control up to 299 °C
• Timer from 0 to 999 sec.
• Compact model, very robust

High Precision Coating / Printing

Spin Coater

High Precision Spin Coating System

• Wafer Size (max): Up to 6 inches / 8 inches
• Bowl Size: 235 / 390 m/m diameter
• Bowl MOC: SUS (Option: PP, Teflon etc)
• Rotation Speed: Up to 10000 RPM
• Memory Storage: 100 Programs
• Digital Microprocess System Controller

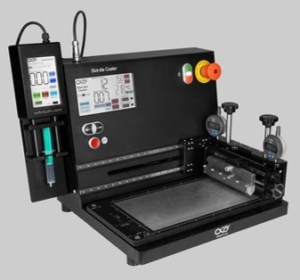

Slot Die Coater

• Coater area: Up to 300 mm x 300 mm with heated chuck
• Heating range: Up to 150 °C
• Servo motor control gap adjustment with precision of 1 μm
• Dry film thickness: 50 nm to 20 μm
• Optional heated slot die head
• Single Sheet / Roll to Roll Process

• Touch screen / Manual adjustment / Computer control
• Coating area: 280 mm x 160 mm
• Coating speed: From 1.2 mm/sec & up to 33 mm/sec
• Base plate temperature: Up to 150 °C
• Versatile coating/printing options: Slot die coating, Bar coating, Knife coating, Pen and Flexo Printing
• Syringe Pump: 0.01 ml – 9.99 ml ink flow, up to 20 / 60 ml syringe, combine up to 4 pumps for advanced mixing

Top

Thin Film Printer / Coater

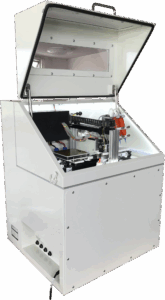

Inkjet Thin Film Printer

• Print heads: Piezoelectric, 128 Nozzles
• 80 pl/droplets, 16.5 mm print width
• Printable area: 120 mm x 120 mm
• Substrate Temperature: RT – 100 °C
• Including inert chamber and paste dispenser

Top

Solar Cell Characterization

Portable Solar Simulator, Class AAA Type

• Illumination Area: 40 mm x 40mm (PEC-L01), 160mm x 160mm (PEC-L15)
• Freely rotatable illumination head at 360 ^o
• Detachable touch panel control
• IV measurement system with software available
• Standard Si cell, temperature controllable cell stage

Hyperion IV LED Solar Simulator

Hyperion IV LED Solar Simulator

• A+A+A+ Class
• Spectral Matching: ± 12.5 %
• Spatial Non-Uniformity: ± 1 %
• Illumination Area: In multiples of 10 cm x 10 cm
• LED Lamp Life > 20000 Hours

Top

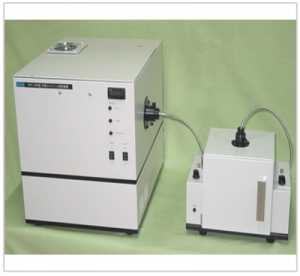

IPCE Measurement System

• Xe light source, Monochromator and Electronics in a compact design
• Optical fiber contact irradiation
• Wavelength range: 300 nm – 1000 nm
• AC / DC measurement
• White bias light option available

Top

All in One Testing Platform

• Transient Dark / SUN JV (prebias, hystresis)
• J_sc / V_oc vs Light Intensity
• Transient photo-current / voltage analysis
• Electroluminescence
• Stability measurements with looped routines
• P&O maximum Power Point Tracker
• Potentiostat / Galvanostat, EIS, IMPS – IMVS IPCE

Top

Consumables

Perovskite

• Iodides
• Bromides

DSSC

• Titania & Platinum Pastes
• Dyes & Sensitizers
• Electrolytes & Components
• Glass Substrates
• Sealants

Cobalt Salt
